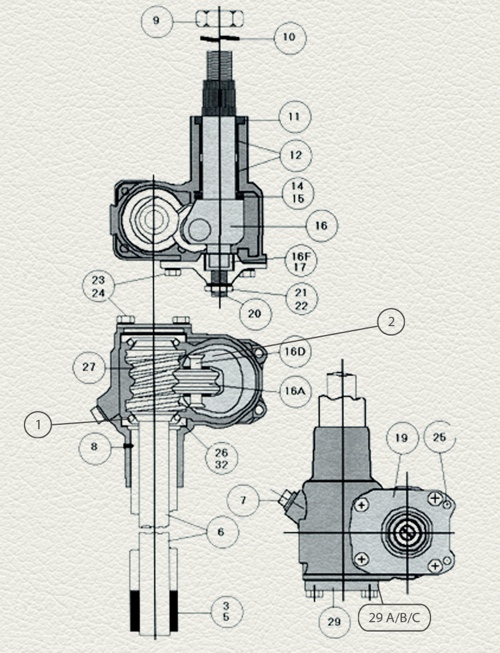

Parts list for P3691/P3690 Marles Steering Box (2" bearings).

Please click on an item for more details.

Drawing NoProductOur Ref
ALVIS D2 / D3 box roller kit
BLUEMELS steering wheel Please ask
Bulkhead grommet DC092600
Chromed steering wheel nut / packing piece DCVPJ5104
DC445700 Bearing Steering box bearing
HRG mounting bracket
Keyed steering wheel DCVPJ5000
Large worm 100mm long DC580
Main casing P3690 DC369000
Main casing P3691 DC369100
Mounting bolts HRG Tower mounting bolts
O ring seal DC369102
Rubber boot ball joint DCRB1
Rubber boot ball joint DCRB2
Rubber boot ball joint DCRB3
Rubber boot ball joint DCRB4
Rubber boot ball joint DCRB5
Rubber boot ball joint DCRB6
Rubber boot ball joint DCRB7
Seal FORD Pilot cross shaft DC15610031
Stator tube clamp DC322402
Steering box clamp DC369101
Steering box oil 1 litre Please ask
Steering wheel hub ref: KTDGM Hub
Tab washer DCTW25MM
TRIUMPH top hat bush DCT100
01 Shim 0.005" top bearing DC249005
01 Shim 0.009" top bearing DC249009
01 Shim 0.015" top bearing DC249015
03 Grommet DC412900
04 Outer tube as required DC411903
05A Sleeve for grommet DC411900
06 Inner column Please ask
06A Not Illustrated Nut - steering wheel DC411901
06B Not illustrated Spring washer for above nut DC411902
07 Filler plug DC905200
07A Filler elbow (not illustrated) DC905201
08 Hammer drive pin DC916600
09 Nut cross shaft DC914600
10 Spring washer DC093200
11 Seal DC992500
12 Bush cross shaft DC243300
14 Shim 0.001" cross shaft DC321901
14 Shim 0.002" cross shaft DC321902
14 Shim 0.003" cross shaft DC321903
14 Shim 0.005" cross shaft DC321905
14 Shim 0.009" cross shaft DC321909
14 Shim 0.015" cross shaft DC321915
14 Shim 0.020" cross shaft DC321920
15 Thrust washer base DC415300
16 Cross shaft LH DC367804
16 Cross shaft RH DC367704
16A Roller DC523800
16B Shim roller DC321001
16D Pin roller DC321000
16E Thrust pin DC506400
16F Sleeve DC367500
17 Bush side plate DC367600
17A Gasket side plate DC327800
19 Side plate DC362300
20 Screw side plate DC320200
21 Spring washer DC099900
22 Lock nut side plate screw DC320300
23 Hex head setscrew DC91400
23B Hex head setscrew (drilled) DC91400B
24 Spring washer DCX12874
25 Dowel side plate DC470800
27 Cam LH DC323300
27 Cam RH DC323400
29 Base plate DC322201
29A Gasket base plate DC32060D
29B Shim 0.005" base plate DC320605
29C Shim 0.007" base plate DC320607
29D Shim 0.010" base plate DC320610
29E Shim 0.015" base plate DC320615
32 Cage and ball assy c/w cup DC249000

Parts list for a P3689/P3688 Marles Steering Box (2.5" bearings).

Please click on a part for more information.

Drawing NoProductOur Ref
ALVIS D2 / D3 box roller kit
BLUEMELS steering wheel Please ask
Bulkhead grommet DC925500
DC445700 Bearing Steering box bearing
Keyed steering wheel DCVPJ5000
Large worm 100mm long DC580
Rubber boot ball joint DCRB1
Rubber boot ball joint DCRB2
Rubber boot ball joint DCRB3
Rubber boot ball joint DCRB4
Rubber boot ball joint DCRB5
Rubber boot ball joint DCRB6
Rubber boot ball joint DCRB7
Steering box oil 1 litre Please ask
Steering wheel hub ref: KTDGM Hub
01 Shim 0.005" top bearing DC273005
01 Shim 0.009" top bearing DC273009
01 Shim 0.010" top bearing DC273010
02 Shim roller DC330410
03 Grommet DC408100
03A Sleeve for grommet DC409500
05 Outer tube as required DC409503
06 Inner column Please ask
06A Not Illustrated Nut - steering wheel DC409501
06B Not illustrated Spring washer for above nut DC409502
07 Filler plug DC903300
07A Filler elbow (not illustrated) DC905201
08 Hammer drive pin DC916600
09 Nut cross shaft DC933200
10 Spring washer DC095500
11 Seal DC924200
12 Bush cross shaft DC330900
12A Bush cross shaft - oversize DC330900A
14 Shim 0.003" cross shaft DC330803
14 Shim 0.005" cross shaft DC330805
14 Shim 0.010" cross shaft DC330810
14 Shim 0.065" cross shaft DC330865
15 Thrust washer base DC415000
16 Cross shaft LH DC517805
16 Cross shaft RH DC517804
16A Roller DC492300
16B Needle rollers DC364600
16C Shim roller DC330401
16D Pin roller DC330400
16E Thrust pin DC506400
16F Sleeve DC367500
17 Bush side plate DC367600
17A Gasket side plate DC33060A
19 Side plate DC422000
20 Screw side plate DC422200
21 Spring washer DC099900
22 Lock nut side plate screw DC422100
23 Hex head setscrew DC924000
24 Spring washer DCX12874
25 Dowel side plate DC470800
26 Bearing cup DC334100
27 Cam LH DC333901
27 Cam RH DC333900
29 Base plate DC390701
29A Gasket base plate DC33010G
29B Shim 0.005" base plate DC390805
29C Shim 0.010" base plate DC390810
29D Shim 0.015" base plate DC390815
32 Cage and ball assy DC273300
Drawing NoProductOur Ref
ALFA ROMEO GEMMER steering box kit ALFA ROMEO 2000 - 2600 left hand drive car
ALFA ROMEO GEMMER steering box kit ALFA ROMEO 2000 - 2600 right hand drive cars only.
ALFA ROMEO seal kit ALFA ROMEO 2000 / 2600 comprehensive steering box seal kit
ALVIS - HEALEY bearings ALVIS - HEALEY steering box bearings
ALVIS D2 / D3 box roller kit
ALVIS P2730 bearing SKF 1130671 P2730
Bearing Steering box
Bearing assy BURMAN steering box
Bearing cup BRISTOL 408 / 409 Bearing cup for BRISTOL steering box
Bearing Our ref: DC5120/21 ERF truck, BRISTOL and LEYLAND bus steering box bearing
BISHOP CAM new 150mm sector shaft BISHOP CAM new 150mm sector shaft
BISHOP CAM new 135mm sector shaft c/w pin
BISHOP CAM new 140mm sector shaft c/w pin
BISHOP CAM new 148mm sector shaft c/w pin
BISHOP CAM new 170mm sector shaft inc. pin Bishop Cam brand new 170mm sector shaft inc. pin
BISHOP CAM new 195mm sector shaft c/w pin Steering box sector shaft
BISHOP CAM new 200mm sector shaft inc. pin Brand new Bishop Cam sector shaft inc pin
BLUEMELS steering wheel Please ask
BRISTOl 408 / 409 steering box kit
Chromed steering wheel nut / packing piece DCVPJ5104
DC445700 Bearing Steering box bearing
Keyed steering wheel DCVPJ5000
Large worm 100mm long DC580
MARLES-WELLER hemispheres Four hemispheres
Red bearing shim MARLES 1LDG
Roller GEMMER steering box 3 ridge roller for GEMMER steering box
Roller pin GEMMER steering box
Rubber boot ball joint DCRB1
Rubber boot ball joint DCRB2
Rubber boot ball joint DCRB3
Rubber boot ball joint DCRB4
Rubber boot ball joint DCRB5
Rubber boot ball joint DCRB6
Rubber boot ball joint DCRB7
Screw and plate DCGemmer1
Seal BRISTOL car steering box Cross shaft seal for BRISTOL steering box nos: 409-1-23020 and 407-1-23185-1 LH drive
Seal BRISTOL car steering idler assy Seal for BRISTOL 408 / 409 idler assembly
Seal kit D5120-1
Seal kit GEMMER steering box
Shim base plate MARLES 1LDG box
Shim base plate MARLES 1LDG box Base plate shim white for MARLES 1LDG box
Shim base plate MARLES 1LDG box
Shim bearing MARLES 1LDG box
Shim cross shaft MARLES 1LDG box
Shim for MARLES 1LDG box
Shim for MARLES 1LDG box
Shim for MARLES 1LDG box
Steering box clamp DC369101
Steering box oil 1 litre Please ask
Steering wheel hub ref: KTDGM Hub
Steering wheel nut ALFA ROMEO 135655190
Tab washer DCTW25MM
Welch plug dished BRISTOL idler assy Dished welch plug
16D Pin roller DC321000
20356 Seal BRISTOl car steering box Input shaft seal for BRISTOL steering box
DC5BC/6 Bearing GEMMER steering box
DC5BC/6CE Bearing GEMMER steering box
